• Rating：12VDC 50mA
• Travel：0.2mm
• Life：50,000 cycles
• Contact Resistance：100mΩ MAX Initial
• Insulation Resistance：100mΩ min. 100VDC
• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN
• Operating Force：2=180gf 3=260gf
• Operating Temperature：-20℃ ~70℃

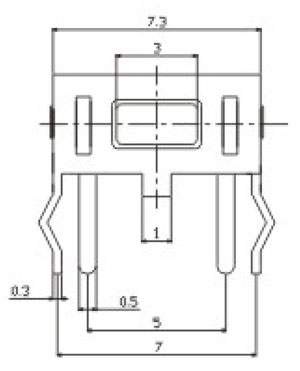

• Height(ZTM-5)：1=4.3mm 2=5.0
|
 |
   |
| Part Number | Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operating Force | Travel | Life | Operating Temperature | Height(ZTM-5) | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|---|
| RTSA-31 | 12VDC 50mA | 100mΩ MAX Initial | 100mΩ min. 100VDC | 250VAC(50/60Hz)FOR 1MIN | 2=180gf 3=260gf | 0.2mm | 50,000 cycles | -20℃ ~70℃ | 1=4.3mm 2=5.0 | 暫無 |
| RTST-32 | 12VDC 50mA | 100mΩ MAX Initial | 100mΩ min. 100VDC | 250VAC(50/60Hz)FOR 1MIN | 2=180gf 3=260gf | 0.2mm | 50,000 cycles | -20℃ ~70℃ | 1=4.3mm 2=5.0 | 暫無 |
| RTSM-31 | 12VDC 50mA | 100mΩ MAX Initial | 100mΩ min. 100VDC | 250VAC(50/60Hz)FOR 1MIN | 2=180gf 3=260gf | 0.2mm | 50,000 cycles | -20℃ ~70℃ | 1=4.3mm 2=5.0 | 暫無 |
| RTSH-32 | 12VDC 50mA | 100mΩ MAX Initial | 100mΩ min. 100VDC | 250VAC(50/60Hz)FOR 1MIN | 2=180gf 3=260gf | 0.2mm | 50,000 cycles | -20℃ ~70℃ | 1=4.3mm 2=5.0 | 暫無 |
| RTC-32 | 12VDC 50mA | 100mΩ MAX Initial | 100mΩ min. 100VDC | 250VAC(50/60Hz)FOR 1MIN | 2=180gf 3=260gf | 0.2mm | 50,000 cycles | -20℃ ~70℃ | 1=4.3mm 2=5.0 | 暫無 |
